Lync Passive Authentication with two-factor authentication – Part II

* Updated 2014-04-17
Added two-factor authentication explanation and updated the image showing the mobile sign in experience. Thanks to Shawn Harry (@shawnharry on twitter, you want to follow him) for pointing this out

Welcome back to part II in this series about “Lync Passive Authentication with two-factor authentication”. In part I we looked at the configuration of passive authentication both on the Lync server and on the AD FS side. Today we’ll take a look at how to add two-factor authentication to this.

Lync passive authentication cannot do two-factor authentication by itself. It relies on AD FS to do the actual authentication. In turn AD FS requires a third-party authentication solution to bring two-factor authentication to the table. Let’s set the table!

 First we need to set up a Security Token Service (STS) that can do the authentication and get the correct claims and pass them to the AD FS which in turn will send us to Lync with claims that is trusted by the Lync 2013 server. In this setup I’m using PointSharp Identity Federation which includes an STS which I have installed on the AD FS server. Please note that the actual STS configuration depends on the STS you use but it should be similar for many.

The configuration of this STS is done in the IIS Management console in a “snap-in” on the PointSharpSTS web application.

sts1

There’s a few settings you need to configure for this to work. In this case we need to tell the STS where the authentication server is, which authentication method to use, who the issuer of the claims is, the URI of the issuer, the relying party URL and a signing certificate that the AD FS trusts.

sts2

By looking at the above image and at the network topology image from part I of the series you will know what names should be put where. In my case the STS is installed on the AD FS server itself so the certificate used for signing the claims is the same as the AD FS uses.

We also need to configure the claims the STS should create and pass on to the AD FS. Lync 2013 wants the primarySID claim. In this case we tell the STS to collect the attribute values of userPrincipalName and objectSID from the authenticated user and send the values as claims to the AD FS.

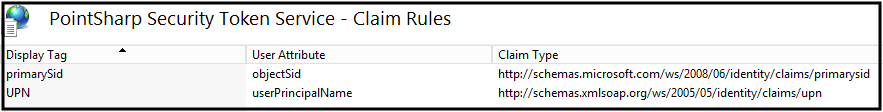

sts3

The next step is to tell the AD FS that the STS is a trusted claims provider. The steps to do this differs a little between different STS’s. You can either use the <code>Add-AdfsClaimsProviderTrust cmdlet<code> in powershell or the AD FS management console. In my case the only thing I had to do was to point out the URL to the STS and give it a name (PointSharp ID in my setup for reference).

When the STS is added it will be listed as a claims provider. We now need to make a claim rule to pass the primarySid claim through. This can be done in the management console but the below example is for powershell.

1. Create a text file on your AD FS server using your favorite editor and paste the lines below into it.
@RuleTemplate = "PassThroughClaims"
@RuleName = "Pass through primary SID"
c:[Type == "http://schemas.microsoft.com/ws/2008/06/identity/claims/primarysid"]
=> issue(claim = c);

2.Save the file as C:\ClaimsProviderRules.txt.
3. Start Windows PowerShell.
4. Attach the claim rule to the claims provider.
Set-AdfsClaimsProviderTrust –TargetName "PointSharp ID" -AcceptanceTransformRulesFile "C:\ClaimsProviderRules.txt"

The final step is to force users who want to use Lync to use the STS that we just configured. This is done by modifying settings on the relying party which is the Lync server.
1. Start PowerShell on the AD FS server
2. Modify Lync relying party (note that “PontSharp ID” is the name of my claims provider in the AD FS console).
Set-AdfsRelyingPartyTrust -Targetname Lync-Ext -ClaimsProviderName @("PointSharp ID")
Set-AdfsRelyingPartyTrust -Targetname Lync-Int -ClaimsProviderName @("PointSharp ID")

The table is now set and this is what it looks like when the dinner is served:

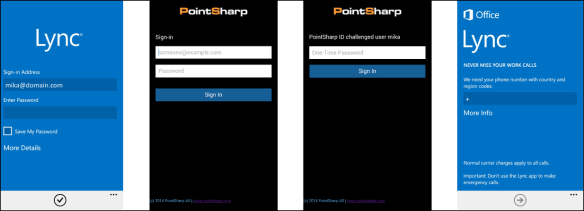

Lync mobile client:
1. Enter SIP-address.
2. Enter username and app-password (not domain password)
3. Enter a valid OTP (One-Time Password)
4. Logged in!
mobile_passive_signin

In the above example a hardware token was used to generate the OTP that provides the second factor in our two-factor authentication. As Shawn mentions in his comment, an SMS could also be used to provide the OTP.

Lync PC-client:
pc_client_signin
The sign in process is the same as on mobile clients, only the graphics differ.

I hope you have enjoyed this series about Lync passive authentication with two-factor authentication”. This part concludes the series but stay tuned for more Lync security.
